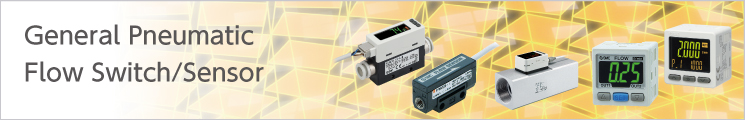

Switch ? Sensor » General Pneumatic - Flow Switch ? Sensor
2-Color Display Digital Flow Switch PF2M7(-L)
Switches/Sensors/Controller ? Electronic Flow Switches/SensorsIO-Link Devices ? Digital Flow Switch
Industrial Device Communication Equipment/Wireless System ? Industrial Device Communication Equipment: IO-Link Compatible Products
-
?3-Screen Display Digital Flow Monitor (Dedicated for the PF2M7) [New]
Allows for the monitoring of remote lines PFGM302 Series
?Dry air, N2, Ar, CO2
?A wide range of flow measurement is possible with 1 product.
Flow ratio: 100:1, Smallest settable increment: 0.01 L/min
?Improved resistance to moisture and foreign matter
?Compact, Lightweight
Weight: 27.3% lighter (55 g → 40 g)
?Low current consumption: 35 mA or less
?Grease-free
?IO-Link compatible
?IO-Link Master
Safety Instructions Pressure Switches/Flow Switches/Precautions Flow Switch Series Variations
Green Procurement (RoHS) IO-Link Master
Green Procurement (RoHS) IO-Link Master
| Series | Rated flow range (L/min) |
|---|---|
| PF2M7 | 0.01 to 1 (0.01 to 0.5) 0.02 to 2 (0.02 to 1) 0.05 to 5 (0.05 to 2.5) 0.1 to 10 (0.1 to 5) 0.3 to 25 (0.3 to 12.5) 0.5 to 50 (0.5 to 25) 1 to 100 (1 to 50) 2 to 200 （2 to 100） ( ): For CO2 |
2-Color Display Digital Flow Switch PFM
Switches/Sensors/Controller ? Electronic Flow Switches/Sensors
-
?Dry air, N2, Ar, CO2
?Grease-free
?Integrated flow adjustment valve
?Compact, lightweight, Space saving
Safety Instructions Pressure Switches/Flow Switches/Precautions Flow Switch Series Variations
Green Procurement (RoHS)
Green Procurement (RoHS)
| Series | Rated flow range (L/min) |
|---|---|
| PFM | 0.2 to 10 (0.2 to 5) 0.5 to 25 (0.5 to 12.5) 1 to 50 (1 to 25) 2 to 100 (2 to 50) ( ): For CO2 |
2-Color Display Digital Flow Switch PFMB
Switches/Sensors/Controller ? Electronic Flow Switches/Sensors
-
?Dry air, N2
?Grease-free
?Integrated flow adjustment valve
?Compact, Space saving
? The PFMB7201 series was discontinued in September 2021.
Please select the PF2M721 series.
Safety Instructions Pressure Switches/Flow Switches/Precautions Flow Switch Series Variations
Green Procurement (RoHS)
Green Procurement (RoHS)
| Series | Rated flow range (L/min) |
|---|---|
| PFMB | 5 to 500 10 to 1000 20 to 2000 |
Flow Sensor PFMV5/PFGV301
Switches/Sensors/Controller ? Electronic Flow Switches/Sensors
-
?For suction verification of very small workpieces
?Repeatability: ± 2% F.S.
?Response speed: 5 ms or less, Withstand pressure: 500 kPa
?Grease-free, RoHS compliant
?Only 1 voltage monitor is required to cover the complete range.
?Related equipment: Suction filter ZFC050 series
Safety Instructions Pressure Switches/Flow Switches/Precautions Flow Switch Series Variations
Green Procurement (RoHS)
Green Procurement (RoHS)
| Series | Rated flow range (L/min) |
|---|---|
| PFMV | 0.0 to 0.1 0 to 0.5 0 to 1 0 to 3 －0.5 to 0.5 －1 to 1 －3 to 3 |
Digital Flow Switch for Air PF2A
Switches/Sensors/Controller ? Electronic Flow Switches/Sensors
-
?An integrated type and a separate monitor type are available.
?Switch output, Accumulated pulse output, Analog output
?Capable of switching back and forth between cumulative and instantaneous flow
?IP65
?4-channel flow monitor
4 different flow ranges can be connected to 1 controller.
∗ The PF2A7□H series has been remodeled in January 2018.
Please select the PF3A7□H series.
Safety Instructions Pressure Switches/Flow Switches/Precautions Flow Switch Series Variations
Green Procurement (RoHS)
Green Procurement (RoHS)
| Series | Rated flow range (L/min) |
|---|---|
| PF2A | 1 to 10 5 to 50 10 to 100 20 to 200 50 to 500 |
3-Color Display Digital Flow Switch PF2MC7□（-L）
Switches/Sensors/Controller ? Electronic Flow Switches/SensorsIO-Link Devices ? Digital Flow Switch
Industrial Device Communication Equipment/Wireless System ? Industrial Device Communication Equipment: IO-Link Compatible Products
-
?Dry air, N2
?3-color/3-screen display
?A wide range of flow measurement is possible with 1 product.
Flow ratio 100:1, Smallest settable increment: 1 L/min
?Grease-free
?IO-Link compatible
?IO-Link Master
Safety Instructions Pressure Switches/Flow Switches/Precautions Flow Switch Series Variations
Green Procurement (RoHS) IO-Link Master
Green Procurement (RoHS) IO-Link Master
| Series | Rated flow range (L/min) |
|---|---|
| PF2MC | 5 to 500 10 to 1000 20 to 2000 |
3-Color Display Digital Flow Switch for Large Flow PF3A□H（-L）
Switches/Sensors/Controller ? Electronic Flow Switches/SensorsClean Series/Low-Particle Generation ? Flow Switch
IO-Link Devices ? Digital Flow Switch
Industrial Device Communication Equipment/Wireless System ? Industrial Device Communication Equipment: IO-Link Compatible Products
-
?Applicable fluid: Air, N2, Ar, CO2 [New]
?500 L/4000 L/8000 L types have been added to the modular type. [New]
?The display range has been expanded. (1.5 times the rated flow range)
[New]
?Accumulated pulse conversion value: Select from 4 types based on
the flow range [New]
?Accumulated pulse width: Select a setting between 50 to 100 ms [New]
?A wide range of flow measurement is possible with 1 product.
?Supports the IO-Link communication protocol
?IO-Link Master
Safety Instructions Pressure Switches/Flow Switches/Precautions
Green Procurement (RoHS) IO-Link Master
Green Procurement (RoHS) IO-Link Master
| Series | Type | Rated flow range [L/min] |
|---|---|---|
| PF3A7□H | Body Ported | 30 to 3000，60 to 6000，120 to 12000 |
| PF3A7□H | Modular | 5 to 500，10 to 1000，20 to 2000，40 to 4000，80 to 8000 |
3-Screen Display Digital Flow Monitor PFG300
Switches/Sensors/Controller ? Electronic Flow Switches/Sensors
-
?Can measure up to 12,000 L/min
?While checking the measured value, settings are possible.
?Current consumption: 25 mA or less
?NPN/PNP switch function
?Input range selection (for pressure/flow rate)
?Simple 3-step setting
Safety Instructions Pressure Switches/Flow Switches/Precautions Flow Switch Series Variations
Green Procurement (RoHS)
Green Procurement (RoHS)
| Series | Applicable Flow Switch |
|---|---|
| PFG300 | PFMB、PF2MC、PF3A□H |
