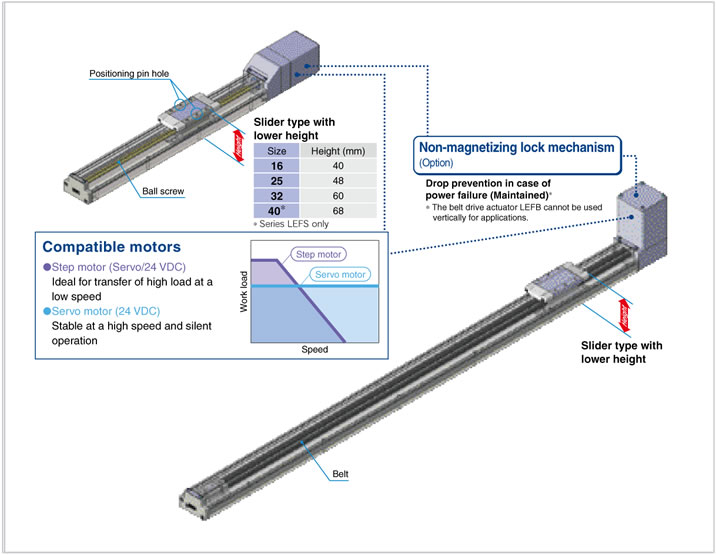

Electric Actuators
» Slider Type Series LEFS/LEFB - Product Features

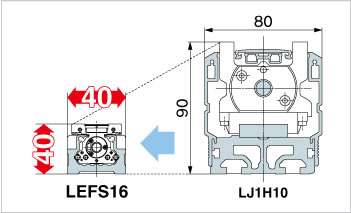

Compact
Height/width dimensions reduced by approx. 50%
* Compared with SMC LJ1 series
(Work load: 10 kg)
Easy mounting of the body/
Reduction of the installation labor
Reduction of the installation labor
Possible to mount the main body without removing
the external cover, etc.

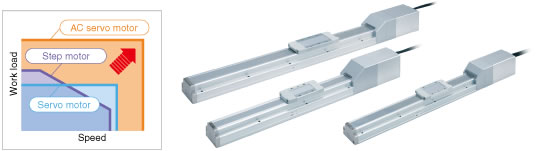

Actuation type selectable
|

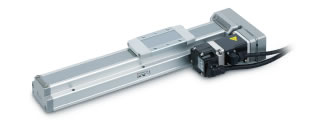

Ball Screw Drive Series LEFS / Size: 16, 25, 32, 40
- Max. work load: 65 kg
- Max. speed: 1,200 mm/s
- Positioning repeatability: ±0.02 mm
- Motor parallel type available!
◎Motor mounting position can be selected
from two directions (Right or Left).
◎Top surface of table and motor are level.

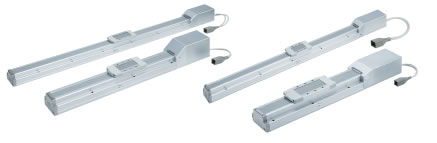

|Belt Drive Series LEFB / Size: 16, 25, 32
- Max. stroke: 2,000 mm
- Max. work load: 60 kg
|
Ball Screw Drive Series LEFS / Size: 25, 32, 40
- High output motor
(100 W/200 W/400 W) - Improved high speed transfer ability
- High acceleration/deceleration compatible (5,000 mm/s2)
- Pulse input type
- With internal absolute encoder
(For LECSB)
- Motor parallel type available!
◎Motor mounting position can be selected from two directions (Right or Left).

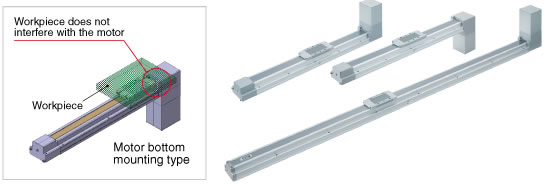

|Belt Drive Series LEFB / Size: 25, 32, 40
- Max. speed: 2,000 mm/s
- Max. stroke: 3,000 mm
- Max. acceleration/deceleration: 20,000 mm/s2

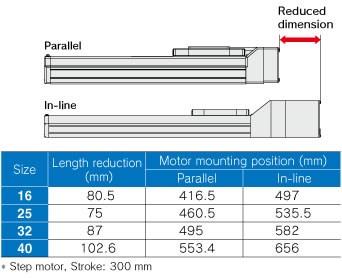

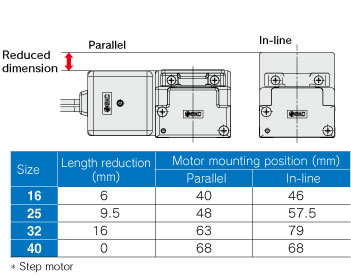

|Motor Parallel Type Series LEFS□R
■Reduced in overall length
■Reduced in height

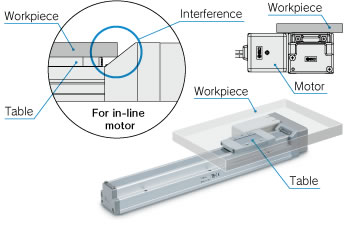

■Top surface of table and
motor are level.

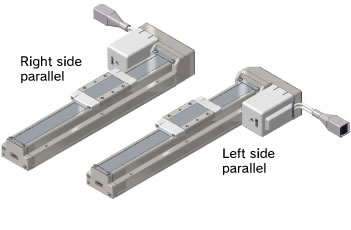

■Motor mounting position can be selected from two directions.

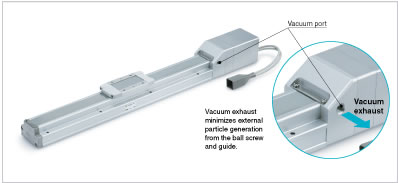

Clean Room Specification Ball Screw Drive Series 11-LEFS
ISO Class 4 *1 (ISO14644-1)
- Built-in vacuum piping
- Possible to mount the main body without removing the external cover, etc.
- Body-integrated linear guide specification
*1 Changes depending on the suction flow rate.

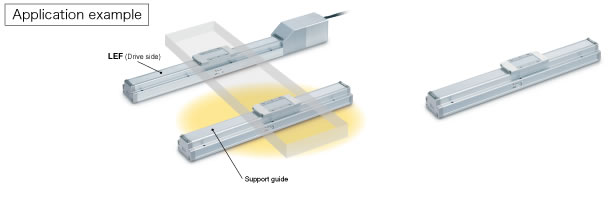

|Support Guide / Series LEFG
A support guide is designed to support work pieces with significant overhang.
- As the dimensions are the same as the LEF series body, installation is simple and contributes to a reduction in installation and assembly labor.

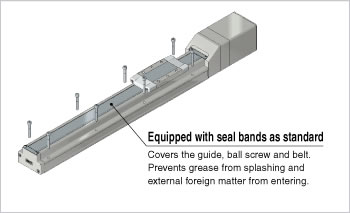

- The standard equipped seal bands prevent grease from splashing and external foreign matter from entering.
