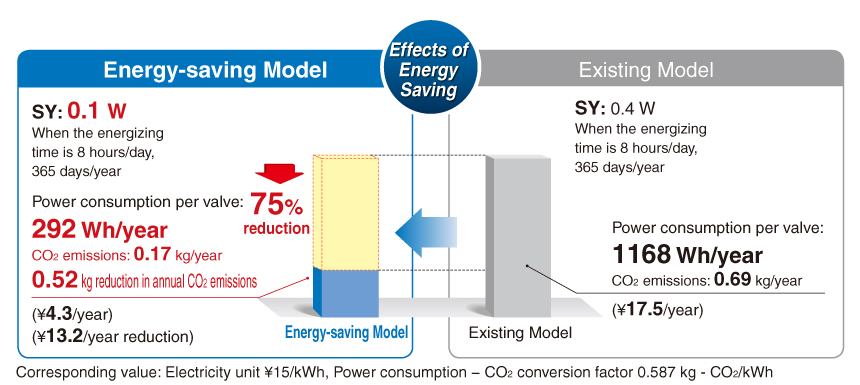

The power-saving circuit can reduce CO2 emissions
(power consumption) when the device is energized.
(power consumption) when the device is energized.
●Reduces power consumption when energized

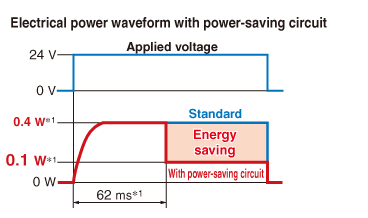

Power consumption can be reduced by approx. 1/4 by reducing the wattage required to hold the valve in an energized state. (Effective energizing time is over 62 ms＊1 at 24 VDC.) Refer to the electrical power waveform as shown below.
＊1 SY/SYJ series
＊2 With DC light
Product Information

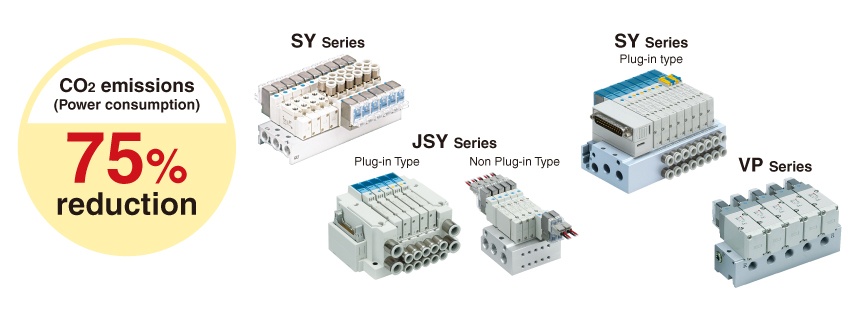

Compact 5-Port Solenoid Valve/Plug-in Type JSY1000/3000/5000
Directional Control Valves ? Pilot Operated 4/5 Port Solenoid Valves
-
?Spacer type ejector for JSY1000 with additional high-noise reduction
silencer [New]
?Size reduction has been made possible thanks to a flow increase
This allows for space saving, weight reduction, and a large flow rate.
?Power consumption: 0.1 W (With power-saving circuit), 0.4 W (Standard)
?Connector type manifold
?A 4-position dual 3-port valve is available
?Manifold Type no.: JJ5SY1, JJ5SY3, JJ5SY5
?Can be connected with the ZK2 series vacuum unit
Safety Instructions 3/4/5 Port Solenoid Valves/Precautions Selection/Technical Data
Green Procurement (RoHS)
Green Procurement (RoHS)

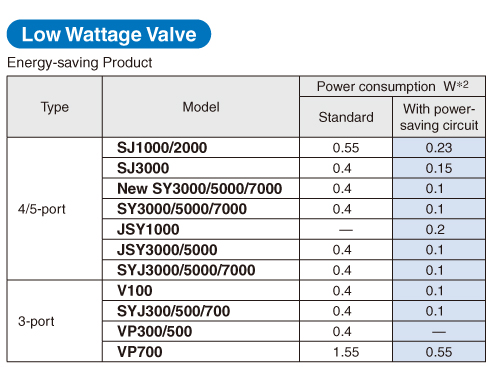

| Series | Flow rate characteristics 4/2→3/5（A/B→E） C［dm3/（s?bar）］ | Flow rate characteristics 4/2→3/5（A/B→E） b | Applicable cylinder size | Power consumption (W) |
|---|---|---|---|---|
| JSY1000 | 0.91 | 0.48 | φ40 | 0.2 (With power-saving circuit) |
| JSY3000 | 2.77 | 0.27 | φ50 | 0.4 (Standard) 0.1 (With power-saving circuit) |
| JSY5000 | 6.59 | 0.22 | φ80 | 0.4 (Standard) 0.1 (With power-saving circuit) |
Compact 5-Port Solenoid Valve/Non Plug-in Type JSY1000/3000/5000
Directional Control Valves ? Pilot Operated 4/5 Port Solenoid Valves
-
?Size reduction possible thanks to a flow increase
This leads to space saving, weight reduction, and a large flow rate.
?Power consumption: 0.1 W (With power saving circuit), 0.4 W (Standard)
?4-position dual 3-port valve available
?Bottom ported is prepared (A, B port).
?Manifold type no.: JJ5SY1, JJ5SY3, JJ5SY5
?Body ported single unit (For mounting P.E plate)
Safety Instructions 3/4/5 Port Solenoid Valves/Precautions Selection/Technical Data
Green Procurement (RoHS)
Green Procurement (RoHS)
| Series | Flow rate characteristics 4/2→3/5（A/B→E） C［dm3/（s?bar）］ | Flow rate ccharacteristics 4/2→3/5（A/B→E） b | Applicable cylinder size | Power consumption (W) |
|---|---|---|---|---|
| JSY1000 | 0.63 | 0.28 | φ32 | 0.2(With power saving circuit) |
| JSY3000 | 1.81 | 0.27 | φ50 | 0.4(Standard) 0.1(With power saving circuit) |
| JSY5000 | 3.72 | 0.18 | φ80 | 0.4(Standard) 0.1(With power saving circuit) |
5-Port Solenoid Valve/Plug-in Type SY3000/5000/7000
Directional Control Valves ? Pilot Operated 4/5 Port Solenoid Valves
-
?Due to the flow increase, the valve size can be reduced!
Saves energy and space
?Power consumption: 0.1 W (With power saving circuit)/0.35 W (Standard)
?Plug-in sub-plate has been newly added!
?Plug-in metal base (IP40)/Plug-in connector connecting base (IP67)
?Manifold type no.: SS5Y3, SS5Y5, SS5Y7
?Can be connected to F.R.L. units (AC-D series) (-X990)
?Supports Interface regulators
＊The EX250/500 series is to be discontinued. When designing new
equipment and facilities, consider using another series (EX260/EX600)
instead.
Safety Instructions 3/4/5 Port Solenoid Valves/Precautions
Selection/Technical Data Quick Selection Table Green Procurement (RoHS)
Selection/Technical Data Quick Selection Table Green Procurement (RoHS)
| Series | Flow rate characteristics 4/2→5/3（A/B→EA/EB） C［dm3/（s?bar）］ | Flow rate characteristics 4/2→5/3（A/B→EA/EB） b | Applicable cylinder size | Power consumption (W) |
|---|---|---|---|---|
| SY3000 | 1.6 | 0.19 | φ50 | 0.35(Standard) 0.1(With power saving circuit) |
| SY5000 | 3.6 | 0.17 | φ63 | 0.35(Standard) 0.1(With power saving circuit) |
| SY7000 | 5.9 | 0.20 | φ80 | 0.35(Standard) 0.1(With power saving circuit) |
5-Port Solenoid Valve SY3000/5000/7000/9000
Directional Control Valves ? Pilot Operated 4/5 Port Solenoid Valves
-
?The combined mounting of a 3-port valve and a 5-port valve is possible.
?Power consumption: 0.1 W (With power saving circuit)
?A wide variety of manifold options are available, such as the aluminum
body manifold, DIN rail, and stacking type manifold.
?Manifold type no.: SS5Y3, SS5Y5, SS5Y7, SS5Y9
?Supports Interface regulators
＊The EX510 series is to be discontinued. When designing new equipment
and facilities, consider using another series (EX260/EX600) instead.
Safety Instructions 3/4/5 Port Solenoid Valves/Precautions Selection/Technical Data
Green Procurement (RoHS)
Green Procurement (RoHS)
| Series | Flow rate characteristics 4/2→5/3（A/B→EA/EB） C［dm3/（s?bar）］ | Flow rate characteristics 4/2→5/3（A/B→EA/EB） b | Flow rate characteristics 4/2→5/3（A/B→EA/EB） Cv | Applicable cylinder size | Power consumption (W) |
|---|---|---|---|---|---|
| SY3000 | 1.1 | 0.30 | 0.26 | φ40 | 0.35(Standard) 0.1(With power saving circuit) |
| SY5000 | 2.8 | 0.29 | 0.66 | φ63 | 0.35(Standard) 0.1(With power saving circuit) |
| SY7000 | 4.5 | 0.27 | 1.1 | φ80 | 0.35(Standard) 0.1(With power saving circuit) |
| SY9000 | 10 | 0.29 | 2.5 | φ100 | 0.35(Standard) 0.1(With power saving circuit) |
| SY300 | 1.1 | 0.30 | 0.26 | φ40 | 0.35(Standard) 0.1(With power saving circuit) |
| SY500 | 2.8 | 0.29 | 0.66 | φ63 | 0.35(Standard) 0.1(With power saving circuit) |
3-Port Solenoid Valve/Pilot Operated Poppet Type VP300/500/700
Directional Control Valves ? Pilot Operated 3 Port Solenoid Valves
-
?Built-in full-wave rectifier (AC)
?Longer life expectancy: 50 million cycles or more
?Built-in strainer in the pilot valve
?The external pilot type can be used for vacuum applications.
?Manifold type no.: VV3P3, VV3P5, VV3P7
Safety Instructions 3/4/5 Port Solenoid Valves/Precautions Selection/Technical Data
Green Procurement (RoHS)
Green Procurement (RoHS)
| Series | Flow rate characteristics 2→3(A→P) C［dm3/（s?bar）］ | Flow rate characteristics 2→3(A→P) b | Flow rate characteristics 2→3(A→P) Cv | Power consumption (W) | For use in vacuum applications |
|---|---|---|---|---|---|
| VP300 | 4.2 | 0.23 | 1.0 | 1.55(Standard) 0.55(With power saving circuit) 0.4(Low wattage specification) | －100 kPa |
| VP500 | 8.9 | 0.20 | 2.1 | 1.55(Standard) 0.55(With power saving circuit) 0.4(Low wattage specification) | －100 kPa |
| VP700 | 15.3 | 0.22 | 3.7 | 1.55(Standard) 0.55(With power saving circuit) | －100 kPa |
