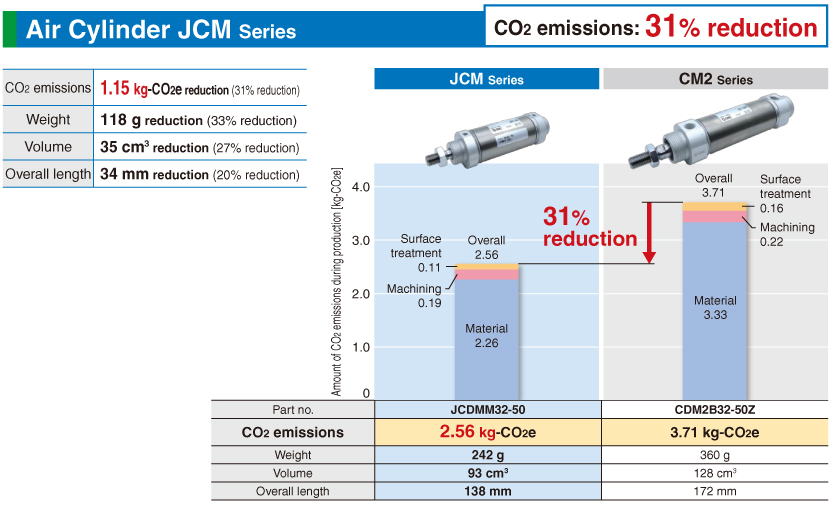

＊For details on CO2 emission calculation conditions (SMC’s calculation method), Click here.

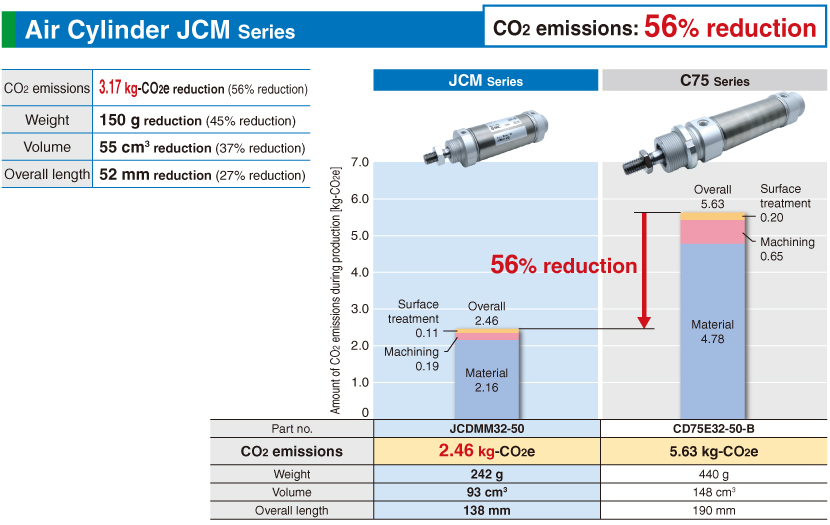

＊For details on CO2 emission calculation conditions (SMC’s calculation method), Click here.
Product Information
Air Cylinder JCM/JCDM
Air Cylinders ? Standard Air Cylinders (Round Type）
-
?A foot type and a flange type have been added. [New]
?Overall length shortened by up to 97 mm
?Weight: Max. 54% lighter (0.69 kg→0.32 kg)
?Various cover types available
?Port size: M5, Rc1/8, and NPT1/8 available
?Male and female rod ends available
?With auto switch (JCDM series: JCDM)
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | JCM | Double acting, Single rod | 20，25，32，40 |
