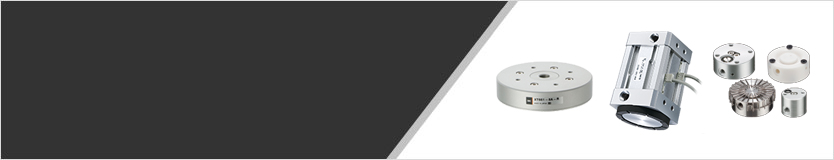

Special Pads
Special Pads
Special Pads
Bernoulli Gripper ZNC
Vacuum Equipment (Vacuum Generators/Vacuum Suction Cups/Other) ? Special Pads
-
?For the adsorption transfer of thin cloths, films, printed circuit boards,
etc.
?Energy saving: Max. 79% reduction (Comparison of air consumption
to lifting force)
?High lifting force: 65 N
10.3 times that of the existing model (Existing model: 6.3 N → ZNC80:
65 N)
?3 types of body materials: Aluminum, Resin, Stainless steel
?Attachments
With stopper: Prevents workpiece slippage
With vibration suppression cover: Suppresses the vibration noise of thin
workpieces
Safety Instructions Vacuum Equipment/Precautions Series Variations/Model Selection
Green Procurement (RoHS)
Green Procurement (RoHS)
| Series | Material | Size | Attachment |
|---|---|---|---|
| ZNC | Aluminum Resin Stainless steel | ?20, ?30, ?40, ?60, ?80 | With stopper With vibration suppression cover |
Bernoulli Gripper with Coanda Grip ZNC-C
Vacuum Equipment (Vacuum Generators/Vacuum Suction Cups/Other) ? Special Pads
-
?Reduces the impact of air flow on light-weight workpieces and adjacent
workpieces
?Prevents lateral slide when suctioning the workpiece
There is no risk of suctioning of powder matter adhering on the
workpiece into the device and pipe, as the workpiece is suctioned while
air is blow.
?Body material: Stainless steel, Aluminum
?With Coanda grip
Prevents blowing away of workpiece before suctioning and lateral sliding
of workpiece during suctioning
Safety Instructions Vacuum Equipment/Precautions Series Variations/Model Selection
Green Procurement (RoHS)
Green Procurement (RoHS)
| Series | Material | Size | Attachment |
|---|---|---|---|
| ZNC-C | Aluminum Stainless steel | ?20, ?30, ?40, ?60, ?80 | With Coanda grip With vibration suppression cover |
Non-contact Gripper XT661
Vacuum Equipment (Vacuum Generators/Vacuum Suction Cups/Other) ? Special Pads
-
?Assists in non-contact workpiece transfer
?Max. workpiece suction distance: 10 mm
?2 types are available:
Cyclone type: High lift: Max. 44 N
Bernoulli type: Amplitude of the workpiece during gripping: ±0.01 mm or less
Safety Instructions Vacuum Equipment/Precautions Series Variations/Model Selection
Green Procurement (RoHS)
Green Procurement (RoHS)
Magnet Gripper MHM
Vacuum Equipment (Vacuum Generators/Vacuum Suction Cups/Other) ? Special PadsRotary Actuators/Air Grippers ? Magnet Grippers
-
?Attracts and holds heavy objects with a magnet
?Holding force: Max. 1000 N (?50, Workpiece thickness 6 mm)
?Transfers steel plates without a vacuum
Support workpieces with holes and uneven surfaces
?Holding force (Attraction force) can be adjusted.
?Drop prevention: Holds workpieces even when air is shut off
| Series | Max. holding force [N] (Workpiece thickness [mm]) |
|---|---|
| MHM-16 | 50(6) |
| MHM-25 | 200(6) |
| MHM-32 | 500(6) |
| MHM-50 | 1000(6) |
Magnet Gripper MHM-X6400
Vacuum Equipment (Vacuum Generators/Vacuum Suction Cups/Other) ? Special PadsArc Welding Process Equipment ? Specialty Cylinders
Rotary Actuators/Air Grippers ? Magnet Grippers
-
?Steel plates can be transferred without a vacuum.
Can support workpieces with holes and uneven surfaces when a vacuum pad cannot be used
?Holds workpieces even when the air is shut off
?High holding force: 80 N (Workpiece plate thickness: 0.6 mm), 120 N
(Workpiece plate thickness: 1.4 mm)
?Residual holding force: 0.3 N or less (Reduces workpiece release time)
| Series | Holding force (Workpiece plate thickness: 0.6 mm) |
|---|---|
| MHM-32D1-X6400 | 80 N |
| MHM-32D2-X6400 | 50 N |
| MHM-32D3-X6400 | 30 N |
