Electric Actuators

Electric Actuators »  Controllers/Drivers

Electric Actuators

Controllers/Drivers Controllers/Drivers

Controllers/Drivers

Manifold Controller JXD1-M□

Electric Actuators/Cylinders ? Controllers/Drivers
Electric Actuators/Cylinders ? Manifold Controller/Manifold Controller Compatible Electric Actuator
    · Up to 16 axes can be connected
    　Max. 8 driver units can be connected
    · Fanless design (no cooling fan)
    　No cooling fan = No need to worry about fan replacement
    · Operating temperature range: 0 to 55°C
    · Communication protocol
    　CC-Link
    　EtherNet/IP?
    　EtherCAT?
    　PROFINET?
    · Cables, etc. can be attached from the front.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Manifold Controller JXD1-M□
    Manual
    Series View search result
    JXD1-M□View search result
  • Manifold Controller JXD1-M□
    DoC/IM
    Series View search result
    JXD1-M□View search result
SeriesCompatible
motor		Power supply
voltage		Communication
protocol		Connecting
actuator		Number of
driver units		Number of axes
JXD1-M□Battery-less absolute (Step motor 24 VDC)24 VDC ±10%CC-Link　EtherNet/IP?　therCAT?　PROFINET?LE2□Max. 8 unitsMax. 16 axes

Step Data Input Type Controller JXC51/61

Electric Actuators/Cylinders ? Controllers/Drivers
    ?The controller is already set with the data of the actuator.
    　 (The actuator and controller are provided as a set.)
    ?Easy operation and simple setting: Easy mode, Detail setting: Normal mode
    ?Teaching box, controller setting software
TypeSeriesCompatible
motor		Power
supply
voltage		Parallel
I/O
Input		Parallel
I/O
Output		Number of
step data
Step data
input type		JXC51/61Step motor
(Servo/24 VDC)		24 VDC
±10%		11
(Photo-coupler
isolation)		13
(Photo-coupler
isolation)		64 points

Step Motor Controller JXCE1/91/P1/D1/L□/M1

Electric Actuators/Cylinders ? Controllers/Drivers
Industrial Device Communication Equipment/Wireless System ? Industrial Device Communication Equipment: PROFINET Compatible Products
Industrial Device Communication Equipment/Wireless System ? Industrial Device Communication Equipment: EtherNet/IP Compatible Products
Industrial Device Communication Equipment/Wireless System ? Industrial Device Communication Equipment: EtherCAT Compatible Products
Industrial Device Communication Equipment/Wireless System ? Industrial Device Communication Equipment: DeviceNet Compatible Products
Industrial Device Communication Equipment/Wireless System ? Industrial Device Communication Equipment: CC-Link Compatible Products
    ?EtherCAT, EtherNet/IP?, PROFINET, DeviceNet?,
    　IO-Link, and CC-Link compatible
    ?Two types of operation command:
    　Step no. defined operation, Numerical data defined operation
    ?Transition wiring of communication cables
    ?Numerical monitoring available
    ?IO-Link communication can be performed.
    ?Controller with STO sub-function/JXC□F
SeriesCompatible
motor		Power
supply
voltage		Fieldbus
JXCE1 (Standard)
JXCEF (With subfunction)		Step motor
(Servo/24 VDC)		24 VDC
±10%		EtherCAT?
JXC91 (Standard)
JXC9F (With subfunction)		Step motor
(Servo/24 VDC)		24 VDC
±10%		EtherNet/IP?
JXCP1 (Standard)
JXCPF (With subfunction)		Step motor
(Servo/24 VDC)		24 VDC
±10%		PROFINET
JXCD1 (Standard)Step motor
(Servo/24 VDC)		24 VDC
±10%		DeviceNet?
JXCL1 (Standard)
JXCLF (With subfunction)		Step motor
(Servo/24 VDC)		24 VDC
±10%		IO-Link
JXCM1 (Standard)Step motor
(Servo/24 VDC)		24 VDC
±10%		CC-Link

Programless Controller LECP1

Electric Actuators/Cylinders ? Controllers/Drivers
    ?No programming required
    　Capable of setting up an electric actuator operation without using a PC or
    　teaching box
    ?Speed/acceleration 16-level adjustment
    ?Compatible with actuators with locks
    ?3-level pushing force settings

    The LECP1 and LECP2 series programless controllers are to be discontinued
    as of the end of May 2025.
    Consider selecting the JXC51/61 series single-axis controller instead, as it
    has interchangeable functions.
    * The most recent versions of the JXC51/61 series (Ver. 3.60 and up) and the
    　ACT Controller 2 setting software (Ver. 1.5.0.0) are required in order to use
    　the LECP1/LECP2 mode.
    ?Click here for details.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Programless Controller LECP1
    Manual
    Type Series View search result
    Programless
    type    		LECP1View search result
  • Programless Controller LECP1
    DoC/IM
    Type Series View search result
    Programless
    type    		LECP1View search result
TypeSeriesCompatible
motor		Power
supply
voltage		Parallel
I/O
Input		Parallel
I/O
Output		Number
of step
data
Programless
type		LECP1Step motor
(Servo/24 VDC)		24 VDC
±10%		6
(Photo-coupler
isolation)		6
(Photo-coupler
isolation)		14 points

Programless Controller (With Stroke Study) LECP2

Electric Actuators/Cylinders ? Controllers/Drivers
    ?End to end operation similar to an air cylinder
    ?Positioning of 2 stroke end points + 12 intermediate points

    The LECP1 and LECP2 series programless controllers are to be discontinued
    as of the end of May 2025.
    Consider selecting the JXC51/61 series single-axis controller instead, as it
    has interchangeable functions.
    * The most recent versions of the JXC51/61 series (Ver. 3.60 and up) and the
    　ACT Controller 2 setting software (Ver. 1.5.0.0) are required in order to use
    　the LECP1/LECP2 mode.
    ?Click here for details.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Programless Controller (With Stroke Study) LECP2
    Manual
    Type Series View search result
    Programless type
    (With stroke study)    		LECP2View search result
TypeSeriesCompatible
motor		Power
supply
voltage		Parallel
I/O
Input		Parallel
I/O
Output		Number
of step
data
Programless type
(With stroke study)		LECP2Step motor
(Servo/24 VDC)		24 VDC
±10%		6
(Photo-coupler
isolation)		6
(Photo-coupler
isolation)		2 stroke end points,
12 intermediate points

Step Motor Driver (Pulse Input Type) LECPA

Electric Actuators/Cylinders ? Controllers/Drivers
    ?A driver that uses pulse signals to allow positioning at any position
    　The actuator can be controlled from the customers' positioning unit.
    ?Return-to-origin command signal
    ?With force limit function (Pushing force/Gripping force operations are available.)
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Step Motor Driver (Pulse Input Type) LECPA
    Manual
    Type Series View search result
    Pulse input
    type    		LECPAView search result
  • Step Motor Driver (Pulse Input Type) LECPA
    DoC/IM
    Type Series View search result
    Pulse input
    type    		LECPAView search result
TypeSeriesCompatible
motor		Power
supply
voltage		Parallel
I/O
Input		Parallel
I/O
Output		Number
of step
data
Pulse input
type		LECPAStep motor
(Servo/24 VDC)		24 VDC
±10%		5
(Photo-coupler
isolation)		9
(Photo-coupler
isolation)		―

AC Servo Motor Driver  LECSA/LECS□-T

Electric Actuators/Cylinders ? Controllers/Drivers
Industrial Device Communication Equipment/Wireless System ? Industrial Device Communication Equipment: PROFINET Compatible Products
Industrial Device Communication Equipment/Wireless System ? Industrial Device Communication Equipment: CC-Link Compatible Products
Industrial Device Communication Equipment/Wireless System ? Industrial Device Communication Equipment: SSCNET III Compatible Products
    ?Pulse input type motor driver
    ?Compatible motor capacity: 100 W, 200 W, 400 W, 750 W
    　(Only the LECSB-T, LECSC-T, LECSS-T, and LECSN□-T support 750 W.)
    ?Compatible encoders:
    　Incremental type
    　Absolute type
    ?Servo adjustment using auto gain tuning
    ?With display setting function
    ?Positioning by up to 255 point tables
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • AC Servo Motor Driver  LECSA/LECS□-T
    Manual
    Type Model View search result
    Pulse input type
    (For incremental encoder)    		LECSAView search result
    Pulse input type/
    Positioning type
    (For absolute encoder)    		LECSB-TView search result
    CC-Link direct input type
    (For absolute encoder)    		LECSC-TView search result
    SSCNETⅢ type/H type
    (For absolute encoder)    		LECSS-TView search result
    Network card type
    (For absolute encoder)    		LECSN□-TView search result
  • AC Servo Motor Driver  LECSA/LECS□-T
    DoC/IM
    Type Model View search result
    Pulse input type
    (For incremental encoder)    		LECSAView search result
    Pulse input type/
    Positioning type
    (For absolute encoder)    		LECSB-TView search result
    CC-Link direct input type
    (For absolute encoder)    		LECSC-TView search result
    SSCNETⅢ type/H type
    (For absolute encoder)    		LECSS-TView search result
    Network card type
    (For absolute encoder)    		LECSN□-TView search result
TypeModelCompatible
motor		Power
supply
voltage		Parallel
input/output
Input		Parallel
input/output
Output
Pulse input type
(For incremental encoder)		LECSAAC servo motor
(100/200/400 W)		100 to 120 VAC
(50/60 Hz)
200 to 230 VAC
(50/60 Hz)
64
Pulse input type/
Positioning type
(For absolute encoder)		LECSB-TAC servo motor
(100/200/400 /750W)		200 to 240 VAC
(50/60 Hz)
106
CC-Link direct input type
(For absolute encoder)		LECSC-TAC servo motor
(100/200/400/750W)		200 to 230 VAC
(50/60 Hz)
――
SSCNETⅢ type/H type
(For absolute encoder)		LECSS-TAC servo motor
(100/200/400/750W)		200 to 240 VAC
(50/60 Hz)		――
Network card type
(For absolute encoder)		LECSN□-TAC servo motor
(100/200/400/750W)		200 to 240 VAC
(50/60 Hz)		――

Multi-Axis Step Motor Controller JXC73/83/92/93

Electric Actuators/Cylinders ? Controllers/Drivers
Industrial Device Communication Equipment/Wireless System ? Industrial Device Communication Equipment: EtherNet/IP Compatible Products
    ?Speed tuning control
    ?Linear/circular interpolation
    ?Positioning/pushing operation
    ?Absolute/relative position coordinate instructions
    ?Step data input (Max. 2048 points)
    ?Space saving, reduced wiring
TypeSeriesI/O typeCompatible
motor		Power
supply
voltage		Number of
axes
Step data
input type		JXC73NPNStep motor
(Servo/24 VDC)		24 VDC
±10%		Max. 4 axes
Step data
input type		JXC83PNPStep motor
(Servo/24 VDC)		24 VDC
±10%		Max. 4 axes
Step data
input type		JXC92EtherNet/IP?Step motor
(Servo/24 VDC)		24 VDC
±10%		Max. 3 axes
Step data
input type		JXC93EtherNet/IP?Step motor
(Servo/24 VDC)		24 VDC
±10%		Max. 4 axes

Fieldbus-compatible Gateway (GW) Unit LEC-G

Electric Actuators/Cylinders ? Controllers/Drivers
Industrial Device Communication Equipment/Wireless System ? Industrial Device Communication Equipment: EtherNet/IP Compatible Products
Industrial Device Communication Equipment/Wireless System ? Industrial Device Communication Equipment: PROFIBUS Compatible Products
Industrial Device Communication Equipment/Wireless System ? Industrial Device Communication Equipment: DeviceNet Compatible Products
Industrial Device Communication Equipment/Wireless System ? Industrial Device Communication Equipment: CC-Link Compatible Products
    ?The LE□ series electric actuators are applicable to Fieldbus protocols.
    ?Conversion unit for Fieldbus network and LEC serial communication
    ?2 methods of operation:
    　Step data input, numerical data input
    ?Position, speed, and other values can be checked on the PLC.
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Fieldbus-compatible Gateway (GW) Unit LEC-G
    Manual
    Series View search result
    LEC-GView search result
  • Fieldbus-compatible Gateway (GW) Unit LEC-G
    DoC/IM
    Series View search result
    LEC-GView search result
SeriesApplicable fieldbusPower supply voltageApplicable controllers
LEC-GCC-Link
DeviceNet?
PROFIBUS DP
EtherNet/IP?		24 VDC
±10%		LECA6 series

Controller/Step Data Input Type LECA6

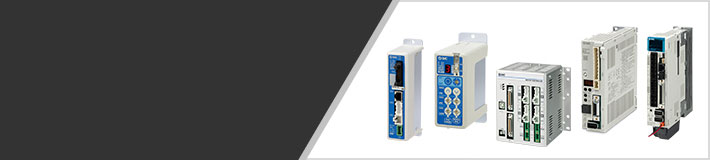

Electric Actuators/Cylinders ? Controllers/Drivers
    ?The controller is already set with the data of the actuator.
    　 (The actuator and controller are provided as a set.)
    ?Easy operation and simple setting: Easy mode, Detail setting: Normal mode
    ?Teaching box, controller setting software
  • 2D/3D CAD

    The new SMC CAD SYSTEM, CADENAS, allows you to output 2D/3D CAD data with full part numbers in various data formats. Responses to part number selection has been greatly improved with the newly developed system.

    Click here for 2D/3D CAD
  • Controller/Step Data Input Type LECA6
    Manual
    Type Series View search result
    Step data
    input type    		LECA6View search result
  • Controller/Step Data Input Type LECA6
    DoC/IM
    Type Series View search result
    Step data
    input type    		LECA6View search result
TypeSeriesCompatible
motor		Power
supply
voltage		Parallel
I/O
Input		Parallel
I/O
Output		Number of
step data
Step data
input type		LECA6Servo motor
(24 VDC)		24 VDC
±10%		11
(Photo-coupler
isolation)		13
(Photo-coupler
isolation)		64 points

Go Top

少妇高潮久久久久久精| 国产说不要停在线| 自拍一区 亚洲| 免费-午夜AV| 在线 国产 美女 一区| 在线观看91内射| 无码毛片视频一区二区免费播放 | 婷婷少妇丰满| 偷拍自拍 欧美| 超碰在线小说| 无码精品一区二区三区在线播放快捷| 大香蕉仺AV| 熟妇 91久久久| 大香蕉国产成人在线视频| 国内精品社区在线观看日韩精品| av黄色小说在线观看| 蜜臀麻豆avsm| 天天操夜| 亚洲国产精品久久不卡| 女人张开腿止男人猛插的视频| 亚洲不卡综合不卡中文一区 | 中文字幕在线观看一区小说| 精品久久久久久88| 日韩三级久久一区二区| 国产美女高潮网站| 黄色美女91美女| 精品少妇久久久久久,com| 泰国干b视频| 亚洲免费视频| 一曲二曲欧美日韩| 日韩三级片电影精品一区| 日本不卡二V三V四| 激情视频黄色| 精品國產美女964| 十八禁美女网站在线播放| 一级网站探花| 少妇高潮ai| 美成人xxxxx| 日韩久久视频在线免费观看| 欧美日韩在线免费观看sp| 12AV成人|
